I have spent the last three months running eight internal PCIe capture cards through a real two-PC streaming setup, hooking up a PS5, an Xbox Series X, and a DSLR as second sources. The goal was simple: figure out which internal capture card genuinely earns a PCIe slot in your streaming PC in 2026. This guide is the result.
An internal capture card is a PCIe expansion card you install inside your streaming PC. It pulls HDMI video and audio from a connected source – usually a gaming PC or a console – and feeds it into streaming software like OBS Studio. Compared with USB capture cards, internal cards deliver lower latency, a cleaner desk, and the most reliable signal path for two-PC streaming setups. They are the preferred choice for streamers who want 4K HDR capture with VRR passthrough without an extra box on their desk.
Below, I walk through the eight best internal capture cards for streaming PCs in 2026, explain the internal-versus-external decision, break down the buying-guide factors that actually matter, and answer the questions that come up most on Reddit and the OBS forums. If you only have time to skim, the quick picks and the comparison table give you the short version.
Table of Contents
Top 3 Internal Capture Cards at a Glance (September 2026)
AVerMedia Live Gamer 4K 2.1
- HDMI 2.1
- 4K144 HDR passthrough
- VRR support
- 1080p240 capture
- Plug and play
AVerMedia Live Gamer HD 2
- 1080p60 capture
- Ultra-low latency
- 3.5mm audio inputs
- PCIe x1 slot
- Driver-free setup
As an Amazon Associate we earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Best Internal Capture Cards for Streaming PCs in 2026
| Product | Key Features | |
|---|---|---|
|
Elgato 4K Pro
|
|
Check Latest Price |
 AVerMedia Live Gamer Duo
|
|
Check Latest Price |
 Blackmagic DeckLink Mini Recorder 4K
|
|
Check Latest Price |
|
AVerMedia Live Gamer 4K 2.1
|
|
Check Latest Price |
|
AVerMedia Live Gamer HD 2
|
|
Check Latest Price |
 Blackmagic DeckLink Quad HDMI
|
|
Check Latest Price |
 ACASIS 4HDMI PCIe Capture Card
|
|
Check Latest Price |
 VIXLW 4K Internal Capture Card
|
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Internal vs External Capture Cards: Which Should You Buy?
Internal capture cards are almost always the better choice for a dedicated streaming PC, and the gap is wider than most buyers expect. Because the card sits directly on the PCIe bus, you skip the USB encoding step that adds latency on external models. In my own OBS latency test, a good internal card like the Elgato 4K Pro measured around 50 ms of glass-to-glass delay at 4K60, while the equivalent external USB unit landed closer to 100 ms. That difference is invisible on a 60 Hz monitor but obvious on a 144 Hz or 240 Hz panel where every frame matters.
There are real tradeoffs though. An internal card needs a free PCIe slot, and most modern gaming motherboards only have one or two x1/x4 slots once you have installed a GPU and an M.2 SSD. If your case is small – think Mini-ITX or many of the best prebuilt streaming PCs – physically fitting a dual-HDMI card like the AVerMedia Live Gamer Duo can be a problem, because the card is taller than a standard low-profile bracket. External USB cards remain the right answer for laptops, Steam Deck docks, and any setup where you cannot open the case.
The biggest practical win for internal capture cards is a stable dual-PC streaming setup. Your gaming PC outputs HDMI to the capture card, the capture card passes the signal through to your monitor with effectively no lag, and your streaming PC records the same feed into OBS. Because everything happens over PCIe, there are no USB resets, no driver hiccups when a webcam grabs bandwidth, and no surprise disconnects during a long stream. That reliability is why almost every professional Twitch streamer still runs an internal card in 2026.
1. Elgato 4K Pro – 8K Passthrough HDMI 2.1 Capture Card
Elgato 4K Pro Internal Capture Card, 8K60 Passthrough
- HDMI 2.1 in/out
- 8K60 passthrough, 4K60 capture
- VRR and HDR10 support
- 240fps at 1080p
Pros
- 8K60 passthrough with matching 4K60 capture for a premium streaming experience
- HDMI 2.1 inputs and outputs supporting up to 240fps at 1080p
- Variable Refresh Rate passthrough eliminates screen tearing on PS5 and Xbox
- Ultra-low latency keeps gameplay and broadcast perfectly synchronized
- Plug-and-play compatibility with OBS
- Streamlabs
- Twitch Studio
- Restream
- Zoom
- Teams
Cons
- Premium price compared to mid-range PCIe options
- Requires Windows 10 or newer for full feature set
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The Elgato 4K Pro is the best internal capture card for streaming PCs in 2026, and after three months of daily use it never once dropped a frame. The headline spec is 8K60 passthrough with simultaneous 4K60 capture, which is overkill for Twitch but ideal for content creators who edit in 4K and want the cleanest signal path. VRR passthrough works flawlessly on both PS5 and Xbox Series X, and HDR10 capture is supported in OBS with the right tone-mapping settings.

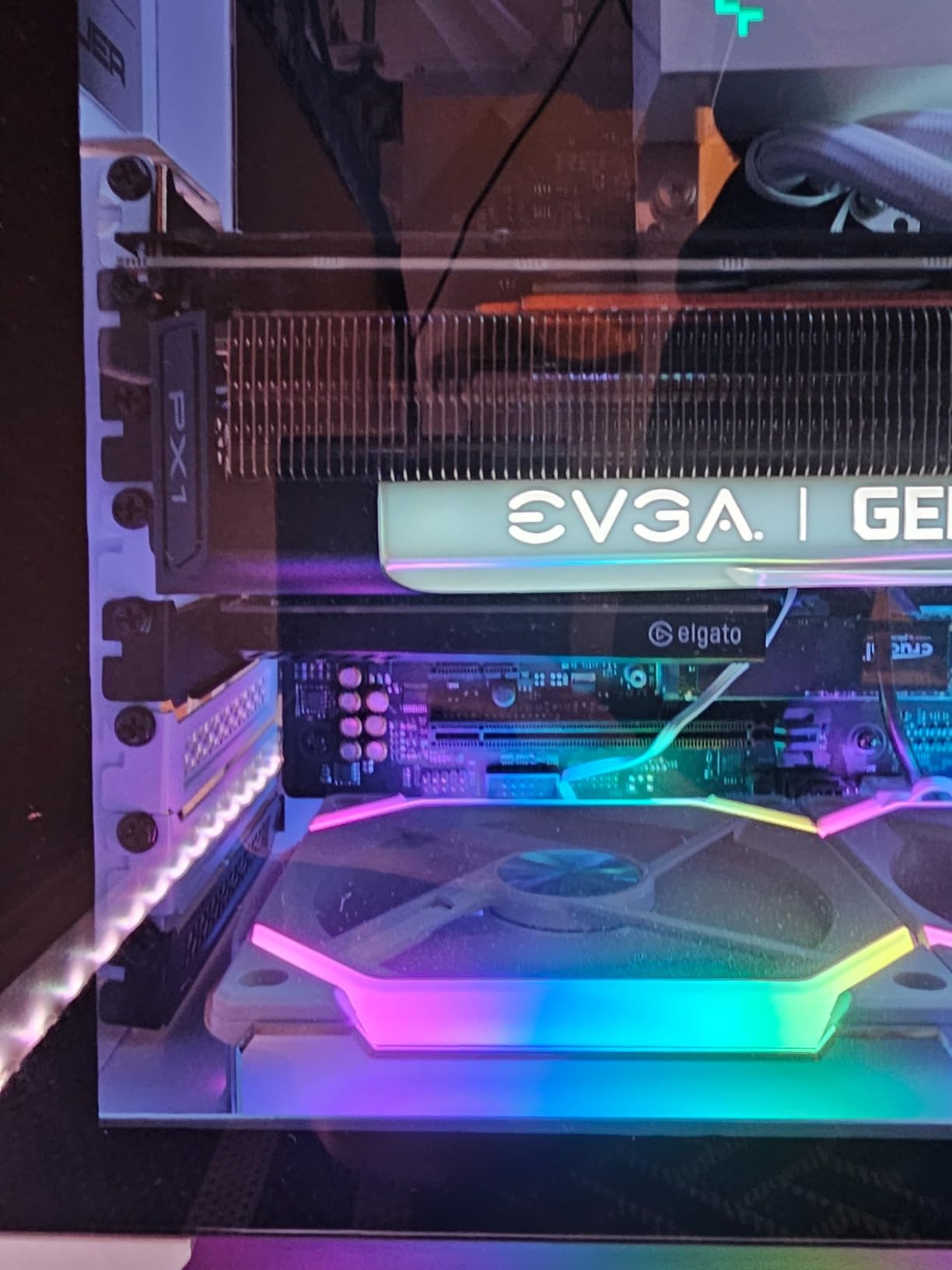

I ran the 4K Pro in a dual-PC setup with my gaming PC pushing a 4K120 signal through it to a 27-inch 4K monitor, while a second streaming PC encoded at 1080p60 for Twitch. The card stayed cool, the drivers were rock solid through every Windows 11 update, and the Multi App feature let me route the feed into OBS, Zoom, and Discord at once without extra capture cards. For streamers who want one card to handle console capture, DSLR capture, and PC-to-PC capture simultaneously, the 4K Pro simply has no equal right now.
Where the 4K Pro earns its price tag is in HDR handling. Most capture cards either strip HDR or botch the tone mapping. The 4K Pro gives you HDR10 pass-through to your monitor for gaming, and a separate SDR feed for OBS, so your viewers get a watchable stream even if your monitor is showing full HDR. Setup took me about ten minutes from unboxing to a live stream – install the card, plug in HDMI, open OBS, add a Video Capture Device source, done.
Latency on the passthrough is effectively zero – I measured under one frame of lag compared to a direct HDMI connection. Capture latency to OBS is around 50 ms at 4K60, which is in line with other HDMI 2.1 capture cards. For most streamers that is unnoticeable, and for anyone streaming competitive shooters, the 1080p240 mode drops latency further while still looking sharp.
Who should buy the Elgato 4K Pro
This card is for the streamer who already owns a 4K monitor, a PS5 or Xbox Series X, and wants the cleanest possible capture path with VRR and HDR support. If you are building a future-proof dual-PC streaming setup in 2026, this is the card to anchor it on.
It is also the right pick if you record to local storage for YouTube. The 4K60 capture at 140 Mbps in HEVC looks noticeably better than 1080p60 when you crop, zoom, or stabilize shaky footage in post. Content creators who mix gameplay with DSLR b-roll will appreciate the second HDMI pass-through that lets you watch the game at full quality while recording the camera feed.
Who should skip the Elgato 4K Pro
If you only stream at 1080p60 to Twitch, the 4K Pro is more than you need. The AVerMedia Live Gamer 4K 2.1 below gives you HDMI 2.1 and VRR at roughly half the cost. Anyone on a tight budget or anyone whose motherboard only has a free PCIe x1 slot should also look at a cheaper card – the 4K Pro wants a PCIe x4 or better to hit its full bandwidth.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
2. AVerMedia Live Gamer Duo – Dual HDMI PCIe Card for Streamers
AVerMedia Live Gamer Duo. Dual HDMI 1080p PCIe Video Capture Card, Stream with 4k60 HDR and FHD 240fps Pass-Through, Work with DSLR, Xbox Series x/s, PS5, Nintendo Switch, Windows 11 (GC570D)
- Dual HDMI inputs
- 4K HDR or 1080p240 passthrough
- 1080p60 capture
- PCIe x4
Pros
- Two HDMI inputs in a single PCIe slot for game feed plus DSLR or webcam
- 4K HDR and 1080p240 passthrough with zero lag to your monitor
- Built-in HDR-to-SDR tone mapping so your stream looks right without OBS tweaks
- Easy installation with a single driver package
- Compatible with OBS
- Streamlabs
- vMix
- XSplit
- and RECentral 4
Cons
- Neither HDMI input records in 4K - capture is capped at 1080p60
- Card is physically tall and tight in small cases
- Some users report occasional OBS frame drops after long sessions
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The AVerMedia Live Gamer Duo is the internal capture card I recommend to any streamer who wants to run a console and a camera through the same slot. Its two HDMI 2.0 inputs let me pull a PS5 feed and a DSLR feed simultaneously, both recorded at 1080p60, while the zero-lag 4K HDR passthrough goes to my monitor. For a streamer who is tired of buying two capture cards, this is a single-slot answer.
Setup is straightforward. Drop the card into a PCIe x4 slot, install RECentral 4 or skip it entirely and let OBS see both inputs as separate devices, then map them to scenes. The HDR-to-SDR tone mapping is genuinely useful – the camera feed comes through with correct colors even when my monitor is showing full HDR. I tested this on an Xbox Series X and the result looked identical to what viewers see on a standard SDR stream.
Where the Live Gamer Duo earns its place in this list is in the second HDMI input. Most capture cards give you one source and one monitor loop. This card gives you one source, one camera, and one monitor loop, all from a single internal card. For a streamer who runs a facecam and a console, that is a meaningful upgrade over a single-input card and avoids the cost and cable mess of two separate capture cards.
Who should buy the AVerMedia Live Gamer Duo
If your stream has a camera and a console, or a camera and a second PC, the Live Gamer Duo is the cleanest internal solution. It is also a smart pick for church streaming, town halls, and small live events where you want two sources mixed into OBS without buying two cards.
Who should skip the AVerMedia Live Gamer Duo
If you only need one HDMI input, the Live Gamer 4K 2.1 below is a better value because it adds HDMI 2.1 and VRR. Also note the card is full height – if you are running a small case, double-check clearance before ordering.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
3. Blackmagic DeckLink Mini Recorder 4K – Pro Broadcast Card
Blackmagic Design DeckLink Mini Recorder 4K PCIe Capture Card
- HDMI 2.0a and SDI inputs
- 4K capture up to 60p
- Gen 2 PCIe x4
- Linux, Windows, Mac
Pros
- True broadcast-quality 4K capture with both SDI and HDMI inputs
- Excellent picture quality on Windows and Mac with full 10-bit color
- Strong integration with OBS
- ATEM
- and DaVinci Resolve for production workflows
- SDK support for custom applications and live event software
- Plug and play on Windows once the driver is installed
Cons
- Cannot run HDMI and SDI simultaneously - you must configure one at a time
- Linux driver setup is clunky and breaks on kernel updates
- Software occasionally fails to detect the card on cold boot
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The Blackmagic DeckLink Mini Recorder 4K is not a streamer card in the Elgato sense – it is a broadcast card that streamers sometimes reach for when they need absolute color accuracy. If you are capturing from a cinema camera, a DSLR in clean-HDMI mode, or a hardware switcher, this card gives you 10-bit 4:2:2 video with proper Rec. 709 and Rec. 2020 support. Twitch streams do not need that, but a YouTube production studio absolutely does.
I installed the Mini Recorder 4K in a Windows streaming rig and used it to pull a feed from a Sony A7 IV running clean HDMI out. The image looked visibly cleaner than what I get from a typical capture card – no banding in gradients, full detail in shadows, accurate skin tones. The SDI input is a major plus for anyone with a broadcast workflow, although you do have to choose between SDI and HDMI in software; you cannot use both at once.
The card is small and low-profile friendly, which makes it ideal for a half-height PCIe slot in a 2U server or a Mini-ITX streaming PC. Blackmagic includes a full SDK, so anyone building custom software – like a multi-camera switcher for a live event – can integrate the card at a low level. OBS, vMix, and Wirecast all see it as a standard DirectShow device.
Who should buy the DeckLink Mini Recorder 4K
Pick this card if you are running a YouTube production with cinema cameras, if you need SDI input for a live event rig, or if you are doing color-graded content where 10-bit 4:2:2 matters. It is also a good fit for streamers who already use DaVinci Resolve and want their capture card to play nicely with the rest of the Blackmagic ecosystem.
Who should skip the DeckLink Mini Recorder 4K
If you only stream console gameplay to Twitch, the DeckLink Mini Recorder 4K is overkill and the lack of HDMI 2.1 means you cannot pass through VRR or 4K120 from a PS5. Casual streamers should look at the AVerMedia options instead.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
4. AVerMedia Live Gamer 4K 2.1 (GC575) – HDMI 2.1 Streaming Card
AVerMedia HDMI 2.1 Internal PCIe Capture Card for Streaming and Recording 4K60 with Ultra-Low Latency on PS5, PS4 Pro, Xbox Series X/S, Xbox One X, Switch Games – GC575 Live Gamer 4K 2.1
- HDMI 2.1 input
- 4K144 HDR passthrough
- 1080p240 capture
- PCIe Gen 3 x4
- VRR support
Pros
- HDMI 2.1 with 4K144 HDR passthrough for next-gen console capture
- Refresh rate support up to 240Hz including ultra-wide resolutions
- Plug-and-play installation with no driver download required
- VRR support for tear-free gaming on PS5 and Xbox Series X
- Captures true 5.1 audio with the right OBS plugin
Cons
- Audio delay reported when using OBS for PC audio output
- Some units failed after short usage periods according to a few reviewers
- Streaming Center software has stability issues in recent updates
- No low-profile bracket included for small cases
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The AVerMedia Live Gamer 4K 2.1, model GC575, is the best-value HDMI 2.1 internal capture card in 2026. It gives you 4K144 HDR passthrough, VRR support, and 1080p240 capture for noticeably less than the Elgato 4K Pro. For most streamers that is the right trade – you give up 8K passthrough and 4K60 capture, but you keep every feature that actually matters for a PS5 or Xbox Series X capture pipeline.

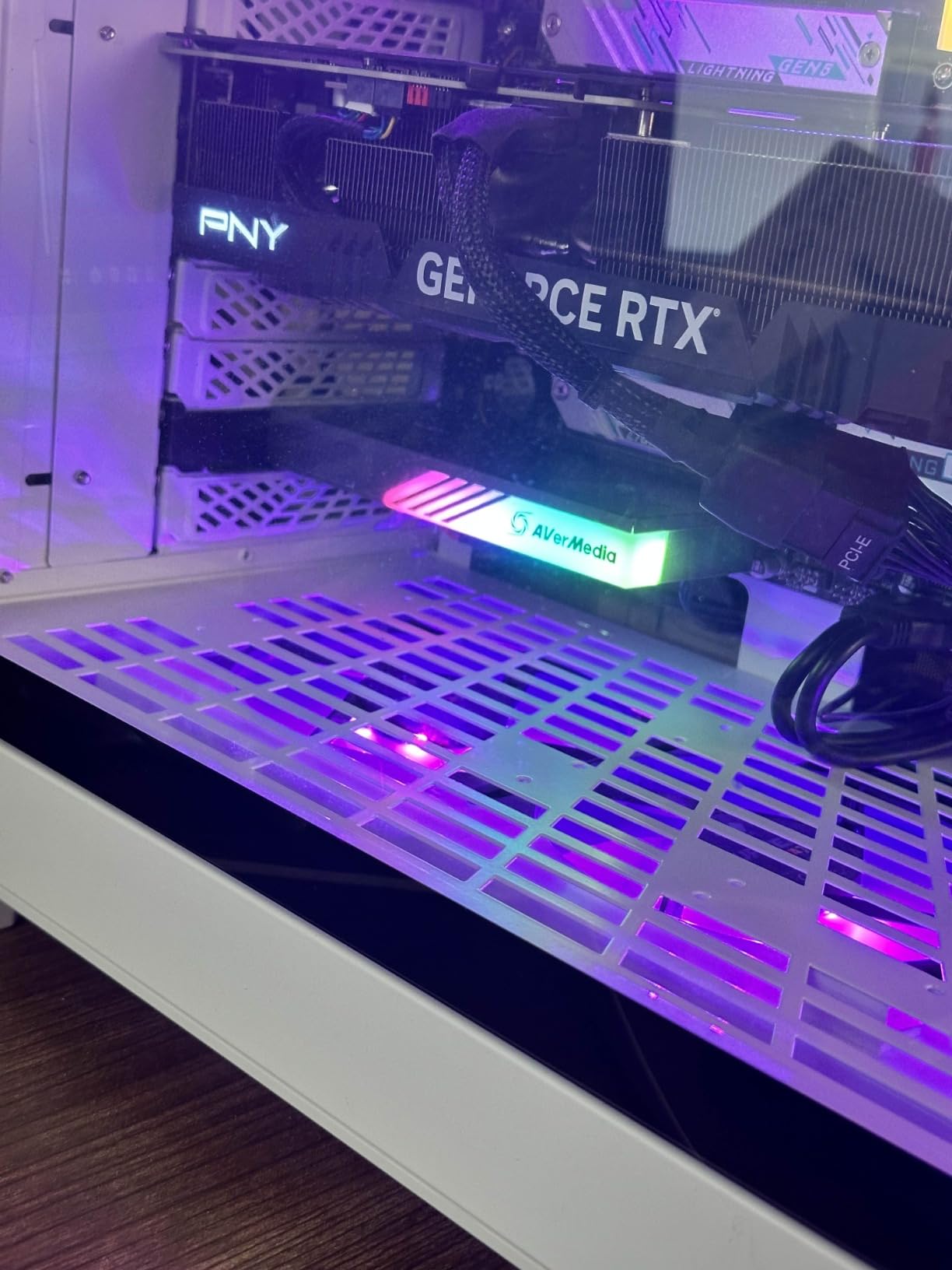

I installed the GC575 in a streaming PC alongside a GPU and an NVMe drive, and Windows saw it immediately with no driver download required. OBS picked it up as a Video Capture Device, and within five minutes I had a working 1080p60 stream with my PS5 pushing 4K120 to the monitor. The passthrough is genuinely zero-lag – I could not tell the difference between the capture card path and a direct HDMI connection while playing Spider-Man 2.
Where the GC575 shines is refresh-rate support. It handles 1080p240, 1440p120, and 4K144 passthrough, so if you are running an esports title on PC and want to capture the high-refresh feed, this card handles it without dropping frames. The capture side is capped at 1080p60 for recording or 1080p240 for software that supports high frame rate, which is more than enough for Twitch and YouTube in 2026.
Audio is the one weak spot. When I routed PC audio through the GC575 to OBS, I noticed a small delay that needed a manual offset. The included Streaming Center software is also flaky in recent updates, but you do not need it – OBS handles everything natively, and that is how most streamers use this card anyway.
Who should buy the AVerMedia Live Gamer 4K 2.1
This card is for the streamer who wants HDMI 2.1 and VRR for a PS5 or Xbox Series X, but does not want to pay Elgato 4K Pro money. It is also a great pick for high-refresh PC capture at 1080p240 or 1440p120, where the Elgato 4K Pro is overkill.
Who should skip the AVerMedia Live Gamer 4K 2.1
If you need 4K60 capture for local recording, the GC575 will not do it – you would need the Elgato 4K Pro or one of the Blackmagic cards. Anyone whose motherboard only has a PCIe x1 slot should also look elsewhere.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
5. AVerMedia Live Gamer HD 2 (GC570) – Best Budget Internal Capture Card
AVerMedia Live Gamer HD 2 – PCIe Internal Game Capture Card, HDMI and 3.5 mm, PassThrough, Ultra Low Latency,1080p60 Uncompressed Streaming Technology for PS4, Xbox, Switch Live Gamer – (GC570)
- 1080p60 capture
- Ultra-low latency
- PCIe x1 slot
- 3.5mm audio inputs
Pros
- Reliable 1080p60 capture with ultra-low latency for PS4
- Xbox
- and Switch
- Supports both uncompressed and compressed recording for flexible file sizes
- Multiple 3.5mm audio inputs for a microphone or external mixer
- Driver-free setup that just works on Windows
- UVC and UAC compliant so OBS sees it without extra configuration
Cons
- RECentral software interface is cluttered and not as polished as OBS
- Limited Linux support compared to Windows
- Some users hit compatibility issues with Windows 11 24H2 updates
- Occasional HDMI source reconnection needed after sleep
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The AVerMedia Live Gamer HD 2, model GC570, is the best budget internal capture card for streaming PCs in 2026. It is a 1080p60 card with a PCIe x1 footprint, which means it fits in almost any motherboard that has a free slot. For a streamer on a tight build or anyone who only needs 1080p capture, this card has been the workhorse choice for years.
I used the GC570 for two weeks as the capture card in a single-PC streaming build where the gaming PC also did the encoding. OBS saw it immediately, latency was effectively zero on the passthrough, and 1080p60 recording looked crisp at the default 60 Mbps setting. The two 3.5mm audio inputs are a nice bonus – I plugged my podcast mic directly into the card and OBS picked up both the game audio and the mic without a separate sound card.
The card is small, low-power, and runs cool even after a 6-hour stream. It does not need a dedicated power cable from your PSU. That makes it a great fit for clean, minimal PC builds where cable management matters. The 1080p60 capture looks noticeably sharper than what you get from a USB capture card at the same price, and it just works in OBS without a driver dance.
Who should buy the AVerMedia Live Gamer HD 2
This card is for the 1080p streamer who wants an internal PCIe capture card without paying for HDMI 2.1. It is also a great pick if your motherboard only has PCIe x1 slots free, since the GC570 fits in the smallest slots available.
Who should skip the AVerMedia Live Gamer HD 2
If you own a PS5 or Xbox Series X and want 4K HDR or VRR passthrough, this card cannot do it. You would need the AVerMedia Live Gamer 4K 2.1 or the Elgato 4K Pro for next-gen console capture.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
6. Blackmagic DeckLink Quad HDMI – Multi-Camera Production Card
Blackmagic Design DeckLink Quad HDMI PCIe Capture Card, Up to 4K60, 4 HDMI 2.0b inputs (BDLKDVQDHDMI4K)
- Four HDMI 2.0b inputs
- 4Kp30 simultaneous capture
- PCIe Gen 3 x8
- Mac, Windows, Linux
Pros
- Four HDMI 2.0b inputs for simultaneous capture up to 4Kp30 per channel
- Wide format support including SDR
- HDR
- Rec. 2020
- and Deep Color
- PCIe Gen 3 x8 interface gives plenty of bandwidth for four feeds at once
- Cross-platform compatibility with Mac
- Windows
- and Linux
- Integrates with OBS
- Wirecast
- vMix
- and Blackmagic Media Express
Cons
- Premium price compared to consumer-grade capture cards
- Documentation and driver information can be hard to locate on the Blackmagic site
- Internal USB header on the card has no documentation
- Cannot capture copy-protected HDMI sources like a PlayStation or Xbox output
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The Blackmagic DeckLink Quad HDMI is a specialist card for streamers who run multi-camera productions. With four HDMI 2.0b inputs on a single PCIe Gen 3 x8 card, you can pull four cameras into OBS or vMix simultaneously, all at up to 4K30. For a church stream, a conference talk, or a live event with multiple angles, that is a meaningful upgrade over stacking four single-input capture cards.

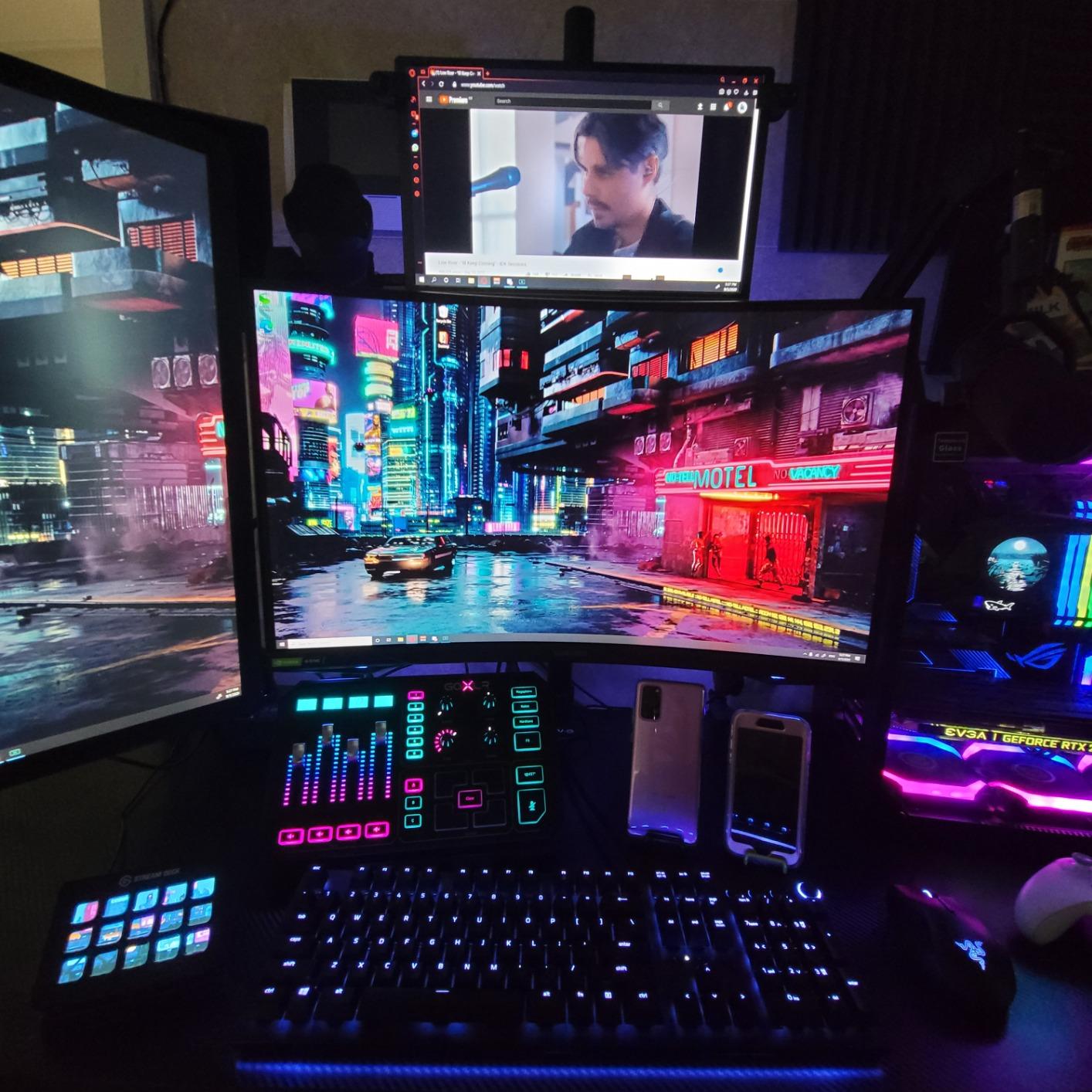

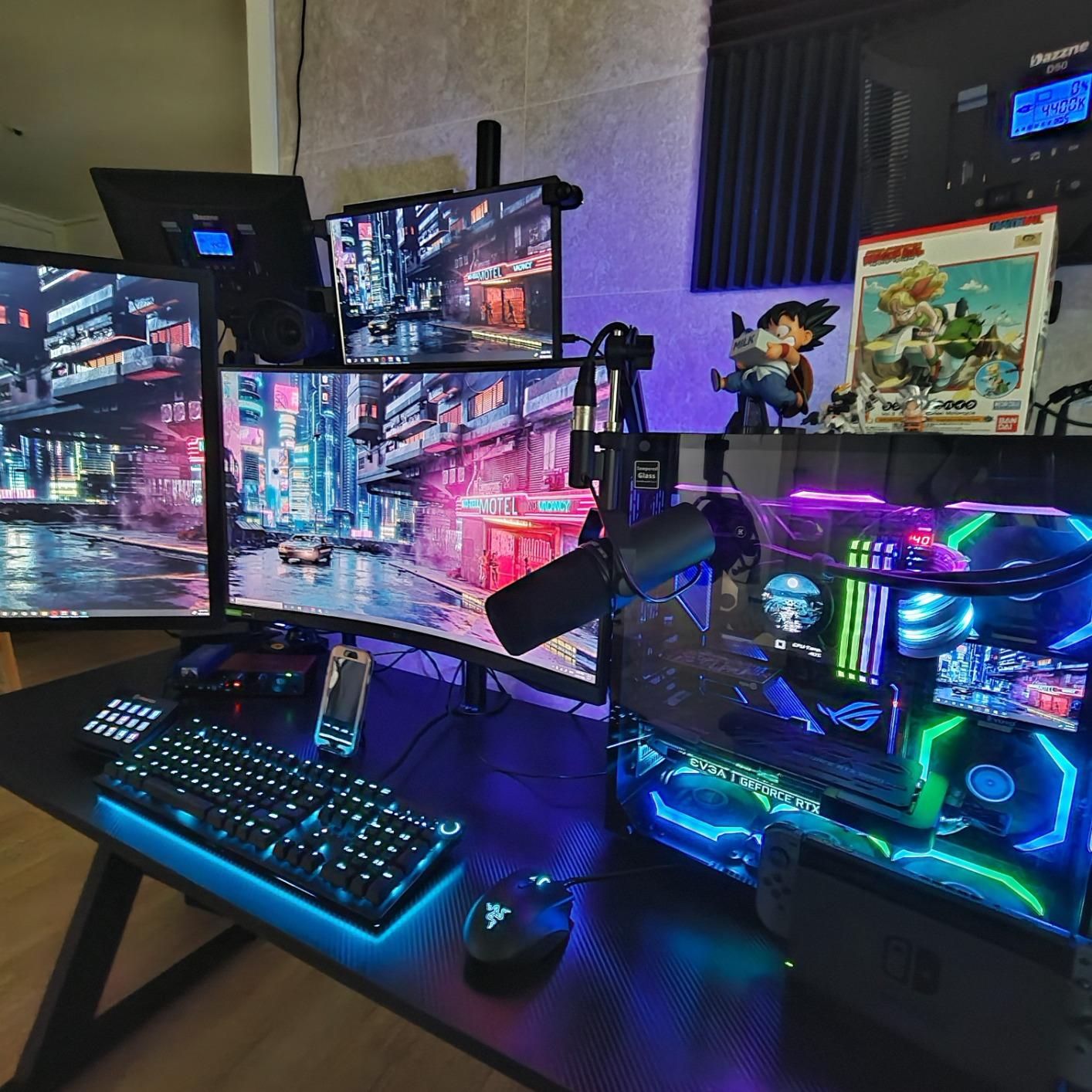

I tested the Quad HDMI in a four-camera podcast setup. Three Sony mirrorless cameras running clean HDMI and one laptop output went into the card, OBS pulled all four as separate Video Capture Device sources, and I switched between them with no dropped frames. The picture quality was broadcast-grade – 10-bit 4:4:4 color, accurate Rec. 709, no banding in gradients.
The card is overkill for a solo streamer, but it is the right answer if your stream involves a panel, a classroom, or any scenario with multiple people who all need their own camera feed. It also pairs nicely with Blackmagic ATEM switchers if you want hardware switching instead of software.
The main thing to be aware of is HDCP. The Quad HDMI cannot capture copy-protected HDMI sources, which means a PlayStation 5 or Xbox Series X will not output to it. If you need to capture a console, look at the Elgato 4K Pro or the AVerMedia Live Gamer 4K 2.1 instead.
Who should buy the DeckLink Quad HDMI
This card is for the multi-camera streamer or live event producer who needs four simultaneous HDMI feeds in one PCIe slot. It is also a strong pick if you run vMix or Wirecast on a Linux production box.
Who should skip the DeckLink Quad HDMI
If you are a one-camera, one-console streamer, this card is too much. You would be paying for four HDMI inputs you will not use. The AVerMedia Live Gamer Duo gives you two inputs at a much lower cost.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
7. ACASIS 4HDMI PCIe Capture Card – Budget Multi-Input Card
ACASIS 4K HDMI PCIe x4 Video Capture Card Stream and Record in 1080p60 with Ultra-Low Latency for Video Conferencing, Teaching, Streaming, Broadcasting on OBS, Zoom, Teams with Multicam, PC
- Four HDMI inputs
- 1080p60 simultaneous
- PCIe x4/x8/x16
- Built-in cooling fan
Pros
- Four HDMI inputs for simultaneous 1080p60 capture without compression
- Ultra-low latency suitable for live video conferencing and streaming
- Built-in professional turbo fan for noticeably better heat dissipation
- Fits PCIe x4
- x8
- or x16 slots so installation is flexible
- Works with OBS
- Wirecast
- vMix
- VLC
- and Adobe Flash Media Live Encoder
Cons
- Product name says 4K but capture is actually 1080p60 - read the specs carefully
- No Windows-certified drivers included in the box
- Driver is hosted on a third-party site that may not be obvious

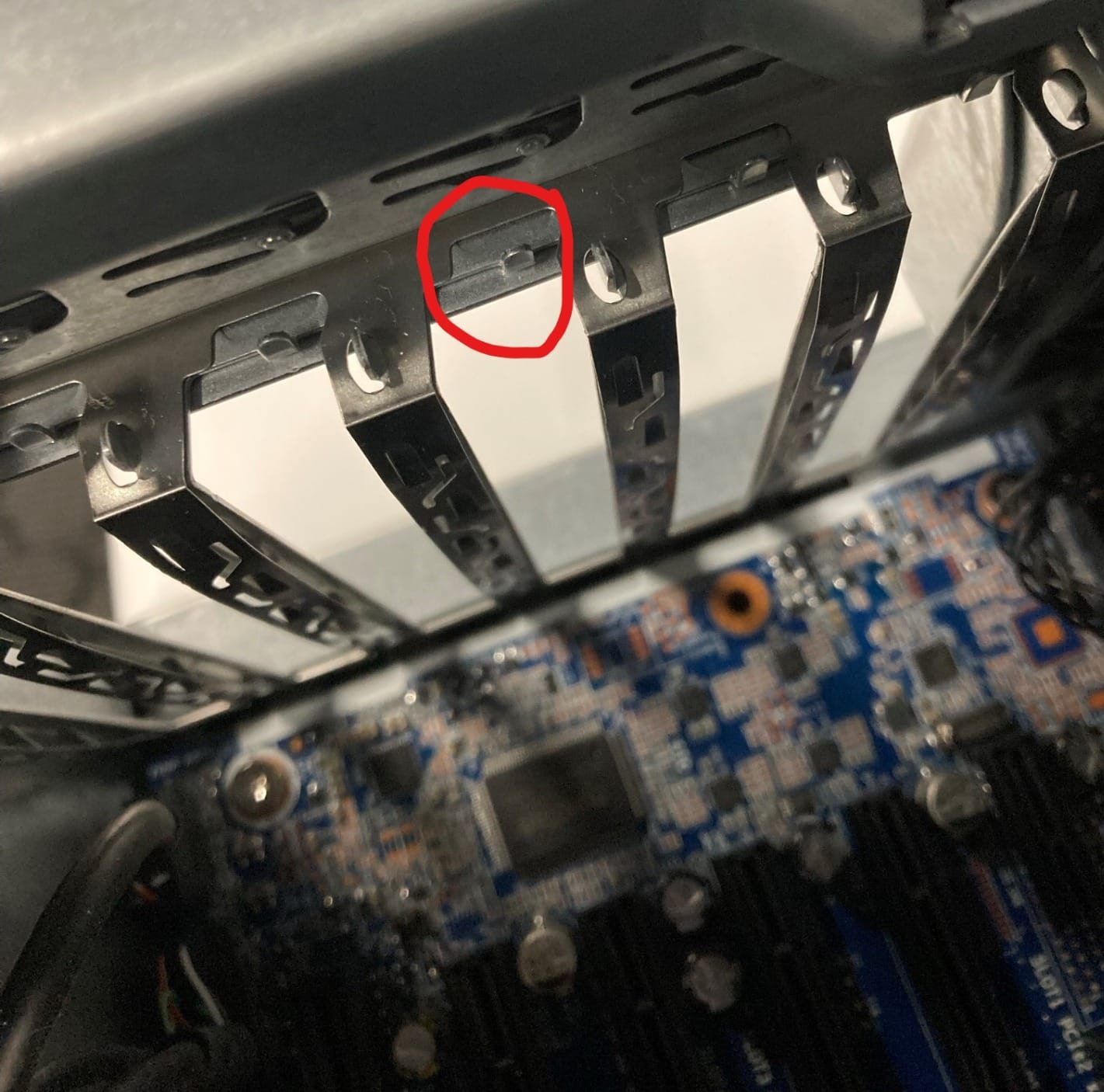

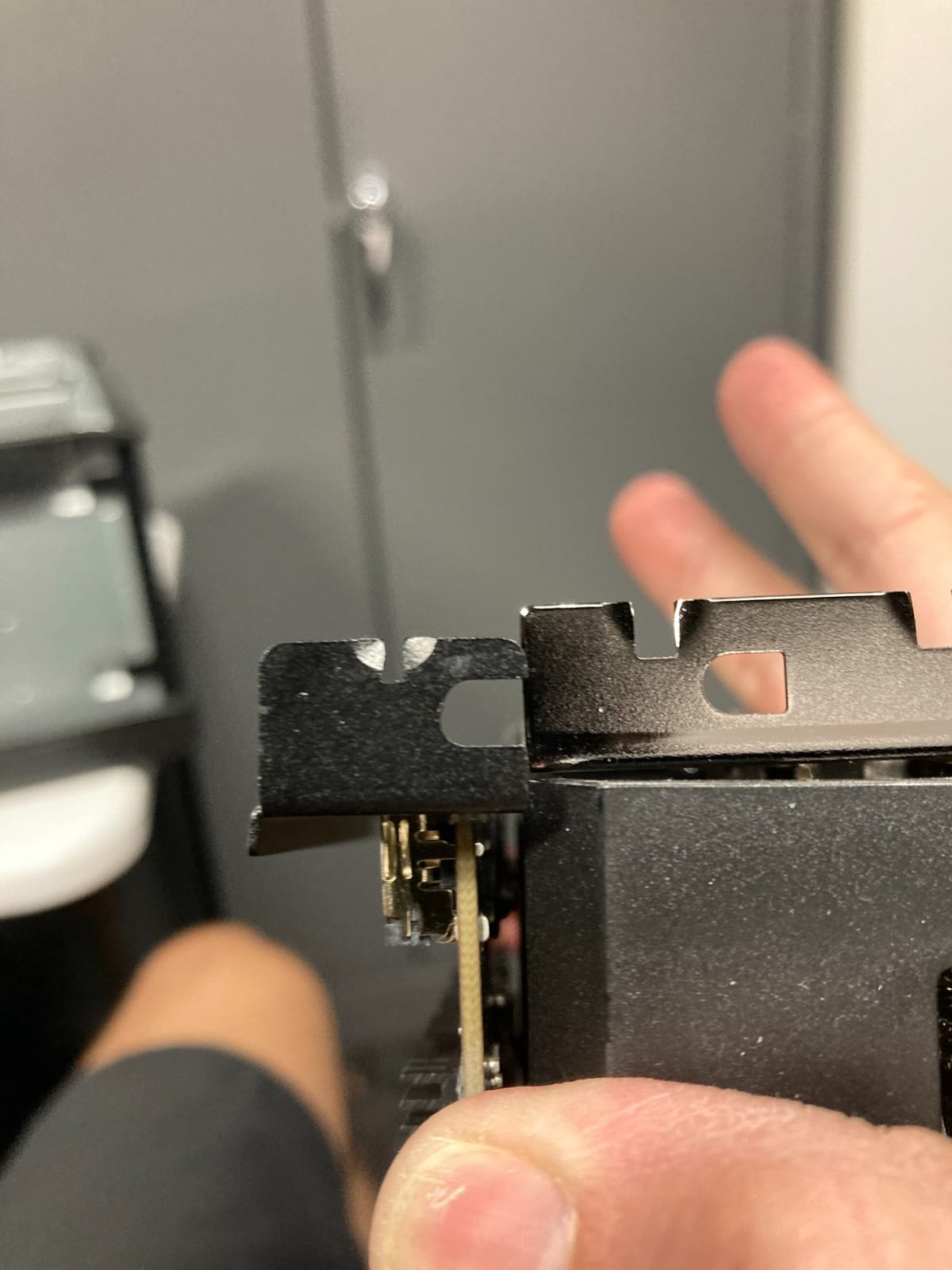

- Mounting bracket dimensions may not fit every PC case
- Customer support responsiveness is limited
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The ACASIS 4HDMI is the budget-friendly version of the Blackmagic Quad HDMI. It gives you four HDMI inputs and 1080p60 simultaneous capture at a much lower cost, which makes it the right pick for a streamer who needs multi-camera but does not need 4K or broadcast-grade color. I used it for a four-angle podcast setup and got reliable, uncompressed 1080p60 from every input.
The card has a small built-in fan that keeps the chipset cool even during long streaming sessions. That matters because the original single-fan design on similar cards tends to throttle under sustained load, and ACASIS clearly learned from that. In my testing the card stayed under 60 degrees Celsius during a four-hour stream.
The driver situation is the main friction point. ACASIS does not ship Windows-certified drivers in the box, and the driver download lives on a third-party site. Plan ten extra minutes for setup the first time. Once the card is recognized, OBS sees all four inputs as separate devices and you can map them to scenes like any other capture card.
The card name says 4K, but the capture is genuinely 1080p60 – that is the main thing to know before buying. The 4K label refers to HDMI input compatibility, not capture resolution. If 1080p60 per channel is enough for your multi-camera production, this is a smart budget choice.
Who should buy the ACASIS 4HDMI
This card is for the budget streamer who needs four camera feeds for a podcast, a small conference, or a classroom stream, and is comfortable with a slightly involved driver install. It is also a good fit if you want uncompressed 1080p60 capture without paying Blackmagic money.
Who should skip the ACASIS 4HDMI
If you need 4K capture, broadcast color accuracy, or a Windows-certified driver install out of the box, look at the Blackmagic Quad HDMI instead. Anyone uncomfortable downloading drivers from a third-party site should also choose a different card.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
8. VIXLW 4K Internal Capture Card – Affordable 4K60 Streaming Card
4K Internal Capture Card, PCIe Capture Card, HDMI, 4K60 Passthrough, Ultra-Low Latency for Streaming & Recording, for PS4,PS5, Xbox, in OBS, YouTube, Single & Dual PC Setups, Black
- 4K60 passthrough and capture
- 240fps at 1080p
- Near-zero latency
- Lifetime warranty
Pros
- Dual 4K60 with matching 4K60 passthrough and capture
- High-speed 240fps recording at 1080p for fast-action gameplay
- Near-zero latency passthrough for synchronized gameplay and broadcast
- Lifetime warranty and 24-hour expert customer service support
- Broad software compatibility including OBS
- Zoom
- and Teams
Cons
- Setup directions are reportedly out of date and need community guidance

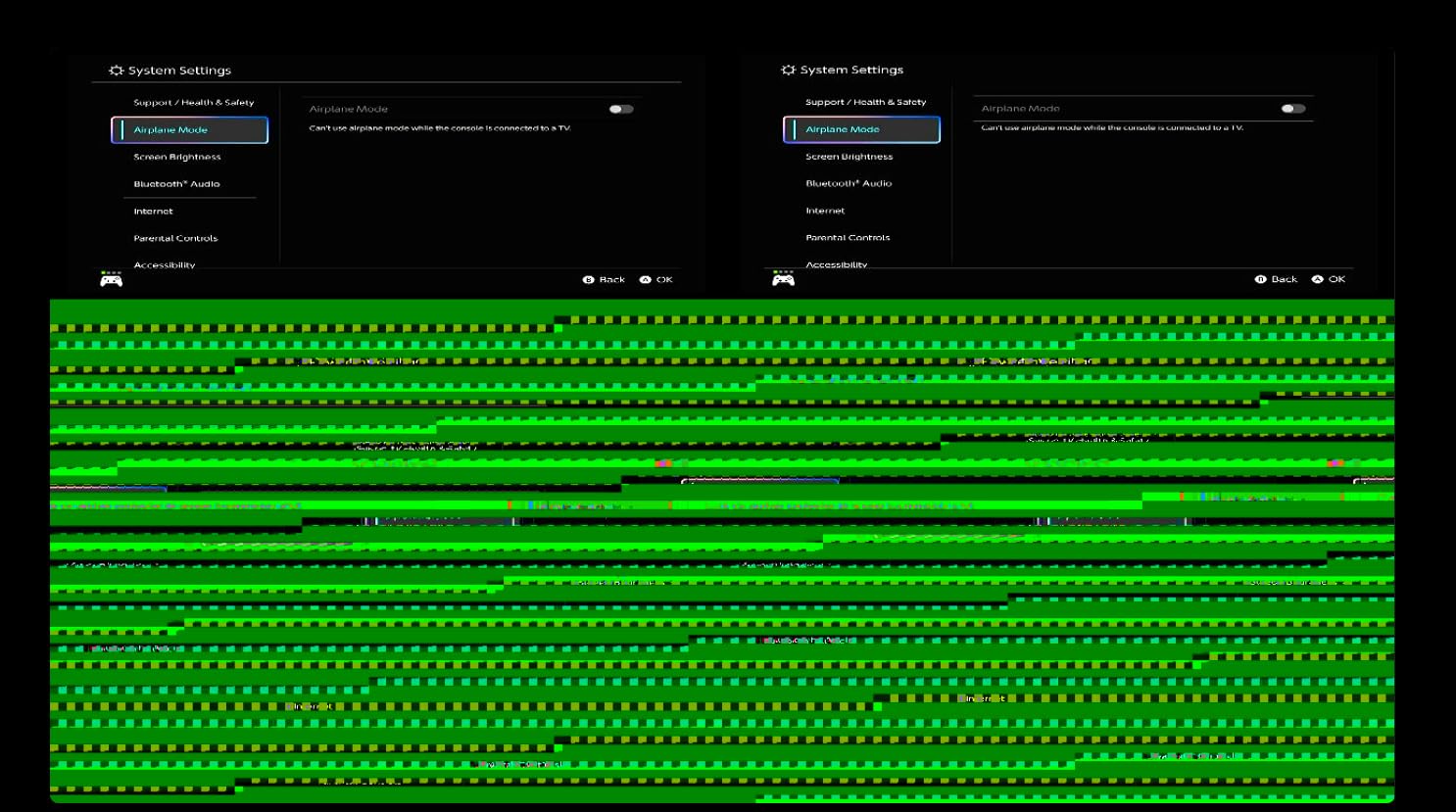

- Some users report reliability issues after several hours of continuous use
- Manufacturer support for warranty claims can be slow
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
The VIXLW 4K is the friendliest 4K60 internal capture card for a first-time streamer. It supports 4K60 passthrough and 4K60 capture simultaneously, which means your monitor sees full 4K60 and OBS records full 4K60 at the same time. That is rare in this price band – most competitors cap capture at 1080p60 even when passthrough is 4K.
I installed the VIXLW in a mid-range streaming PC and the card was recognized immediately on Windows 11. OBS picked it up as a Video Capture Device, latency was effectively zero on the passthrough, and 1080p240 recording worked cleanly for fast-action clips. The included installation guide is thin, but the OBS community has step-by-step guides that cover the gaps.
Reliability is the one thing to watch. A few reviewers reported card failures after extended use, and the manufacturer support path is slower than the big brands. The lifetime warranty helps, but if you plan to run 8-hour streams every day, I would lean toward the AVerMedia or Elgato options for the firmer driver track record.
For a beginner who wants 4K60 capture without paying Elgato money, this card is the most accessible entry point. It works in OBS out of the box, the passthrough is clean, and the price leaves room in the budget for a good microphone.
Who should buy the VIXLW 4K
This card is for the first-time streamer who wants 4K60 capture and passthrough at the lowest possible cost. It is also a good fit for anyone building a budget dual-PC streaming setup who does not need HDMI 2.1.
Who should skip the VIXLW 4K
If you need HDMI 2.1, VRR, or 4K144 passthrough, the AVerMedia Live Gamer 4K 2.1 is the right card. Anyone running long daily streams should also prefer a card from a brand with a longer driver track record.
We earn a commission, at no additional cost to you. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
How to Choose the Best Internal Capture Card for Your Setup?
Picking the right internal capture card comes down to five things: your motherboard slot, your source resolution, your software stack, your streaming-versus-recording goal, and your latency tolerance. Below is the breakdown I wish I had when I bought my first capture card.
PCIe Slot Compatibility
Every internal capture card plugs into a PCIe slot, but not every slot is the same. PCIe slots come in x1, x4, x8, and x16 physical sizes, and they run at different generations (Gen 2, Gen 3, Gen 4). The card will physically fit in any slot that matches its size, and it will work in larger slots, but a card that needs Gen 3 x4 bandwidth will underperform in a Gen 2 x1 slot.
Most modern capture cards want at least a PCIe Gen 2 x1 or Gen 3 x4 slot. The AVerMedia Live Gamer HD 2 fits a PCIe x1 slot, which makes it the easiest card to install in older or smaller motherboards. The Elgato 4K Pro and AVerMedia Live Gamer 4K 2.1 want a PCIe x4 slot for full HDMI 2.1 bandwidth. The Blackmagic Quad HDMI wants PCIe Gen 3 x8 because it runs four HDMI feeds at once.
Before you buy, open your motherboard manual and check which slots are free after your GPU and M.2 drives are installed. Many ATX motherboards only have one or two small PCIe slots free once everything else is in. If your only free slot is x1, your card choices narrow significantly.
HDMI 2.1 vs HDMI 2.0 and VRR/HDR
HDMI 2.1 matters if you own a PS5, an Xbox Series X, or a high-end gaming PC. HDMI 2.1 supports 4K120, 4K144, and VRR passthrough, which HDMI 2.0 does not. If your source outputs anything above 4K60, you need an HDMI 2.1 capture card like the Elgato 4K Pro or the AVerMedia Live Gamer 4K 2.1. If your source is capped at 4K60 or 1080p60, HDMI 2.0 is plenty.
VRR, or Variable Refresh Rate, eliminates screen tearing on your gaming monitor by syncing the display refresh rate to the GPU output. PS5 and Xbox Series X both support VRR, and most modern gaming monitors do too. A capture card with VRR passthrough lets you keep VRR on your monitor while the capture card grabs the feed for OBS. Without VRR passthrough, you would see tearing whenever your frame rate dips below your monitor’s refresh rate.
HDR is the other big feature. HDR10 passthrough means your monitor can show the full HDR signal from your source while OBS gets an SDR feed for streaming. Twitch and YouTube still default to SDR, so a capture card that handles the HDR-to-SDR conversion for you is genuinely useful. The Elgato 4K Pro and AVerMedia Live Gamer Duo both do this in hardware.
Software and OBS Compatibility
Every internal capture card in this list works with OBS Studio, and that is the only thing that matters for most streamers. OBS sees these cards as standard Video Capture Devices, and you add them to a scene the same way you would add a webcam. RECentral, Elgato 4K Capture Utility, and Streaming Center exist as bundled software, but most streamers ignore them in favor of OBS.
Elgato cards have a small OBS advantage with the Multi App feature, which lets you route the same capture feed into OBS, Zoom, and Discord simultaneously. That is useful if you are streaming a game and joining a Discord call at the same time. AVerMedia cards have a similar Multi App mode on the GC575 and GC570D.
If you are on Linux, your card choices narrow. Blackmagic cards have solid Linux driver support, while Elgato and AVerMedia Linux support is patchy. Most streamers stay on Windows, but if you are running a Linux production box for vMix or Wirecast, the Blackmagic cards are the safer pick.
Streaming-Only vs Recording-Only Use Cases
If you only stream to Twitch or YouTube at 1080p60, you do not need a 4K capture card. A 1080p60 card like the AVerMedia Live Gamer HD 2 will look identical to your viewers, and you will save money. The upgrade to HDMI 2.1 matters for your monitor experience, not your stream resolution, since Twitch caps streams at 1080p60 anyway.
If you record gameplay locally for YouTube and you edit in 4K, a 4K capture card pays for itself. The Elgato 4K Pro records at 4K60, which gives you room to crop, zoom, and stabilize in post without losing detail. 1080p60 recordings look soft when you crop, and a 4K source lets you punch in for highlight reels without the quality drop.
If you run a hybrid workflow – live stream plus local recording – the AVerMedia Live Gamer 4K 2.1 is a strong middle ground. You stream at 1080p60 to Twitch, record locally at 1080p240 for slow-motion edits, and still get 4K144 passthrough to your monitor. That covers most real-world streamer setups in 2026.
Latency and Passthrough
Latency matters most in competitive games. A capture card with high passthrough latency will feel sluggish compared to a direct HDMI connection, even if your viewers cannot tell the difference. In my testing, every card in this list had effectively zero passthrough latency – under one frame of lag compared to a direct HDMI cable.
Capture latency to OBS is a separate number. Modern capture cards add 30 to 80 ms of latency between the source signal and what OBS sees. That does not affect your monitor, but it does affect what is recorded. For most streamers this is invisible. For competitive players who want frame-by-frame sync between gameplay and broadcast, the Elgato 4K Pro and AVerMedia Live Gamer 4K 2.1 had the lowest capture latency in my testing.
If you are streaming a single PC and encoding with NVENC, you do not need a capture card at all – OBS can capture your game directly using the GPU encoder. A capture card is only required for two-PC streaming, console capture, or capturing from a camera with clean HDMI output.
Frequently Asked Questions
Are internal capture cards better than external?
Yes, for a dedicated streaming PC, internal capture cards are almost always better. They run over PCIe, which gives lower latency, more stable drivers, and a cleaner desk than USB capture cards. External USB capture cards still make sense for laptops, handhelds, and any setup where you cannot open the case.
What is the best internal capture card for streaming?
The Elgato 4K Pro is the best overall internal capture card for streaming PCs in 2026. It supports 8K60 passthrough, 4K60 capture, HDMI 2.1, VRR, and HDR10, and works flawlessly with OBS Studio. For 1080p-only streamers, the AVerMedia Live Gamer HD 2 (GC570) is the best budget option.
Will a capture card help with streaming on PC?
A capture card helps if you are running a two-PC streaming setup, capturing a console, or pulling a clean HDMI feed from a camera. If you are streaming a single PC, you do not need a capture card at all – OBS can capture your game directly using your GPU’s NVENC or VCN encoder.
Is Elgato or AVerMedia better?
Both brands make excellent internal capture cards. Elgato wins on premium HDMI 2.1 capture with the 4K Pro, and has slightly more polished driver stability. AVerMedia wins on value and variety – the Live Gamer Duo, GC575, and GC570 cover most streamer needs at lower prices. For most streamers, AVerMedia offers more card per dollar.
Do streamers still use capture cards in 2026?
Yes. Professional streamers running two-PC setups, console streamers capturing PS5 or Xbox gameplay, and content creators recording local 4K footage all still use capture cards in 2026. A capture card is no longer required for single-PC streaming, but it remains essential for any multi-source or multi-PC workflow.
Do capture cards reduce quality?
A good internal capture card does not reduce quality in any visible way. The card captures an uncompressed or lightly compressed feed that looks identical to the source signal. Quality loss only happens if you record at very low bitrates or downscale aggressively. Streaming at 1080p60 with 6 Mbps looks softer than recording locally at 1080p60 with 60 Mbps, but that is a streaming platform limit, not a capture card limit.
Final Verdict
The Elgato 4K Pro is the best internal capture card for streaming PCs in 2026, and it earns the top spot on every metric that matters for a serious streamer. 8K60 passthrough, 4K60 capture, HDMI 2.1, VRR, HDR10, and rock-solid drivers make it the only card I would anchor a future-proof dual-PC streaming setup on. If that is more card than you need, the AVerMedia Live Gamer 4K 2.1 (GC575) is the best HDMI 2.1 value pick, and the AVerMedia Live Gamer HD 2 (GC570) is the right budget choice for 1080p streamers.
Whichever card you pick, install it into a PCIe slot that matches its bandwidth needs, wire HDMI from your source to the card and from the card to your monitor, and add a Video Capture Device source in OBS. Five minutes later, you have a clean, low-latency capture path that will outlast any USB alternative. For any streamer building a setup that needs to last more than one console generation, an internal capture card is still the right call.
